The landscape of automotive restoration is undergoing a radical transformation as the barriers to electric vehicle (EV) technology continue to fall. While the high-end market for "electromods" is currently dominated by specialist firms charging six-figure sums to electrify classic Porsches and Land Rovers, a burgeoning grassroots movement is proving that sustainable transportation can be achieved on a shoestring budget. A recent project by YouTuber "Life of Troy" has captured the attention of the automotive community by successfully converting a 1996 Suzuki Jimny to electric power for less than $5,000, completing the entire mechanical overhaul in just five days. This project serves as a case study for the feasibility of low-cost EV swaps, highlighting a shift toward modular, accessible components that allow enthusiasts to bypass the internal combustion engine’s mounting maintenance costs.
The Catalyst for Conversion: A Legacy of Mechanical Failure

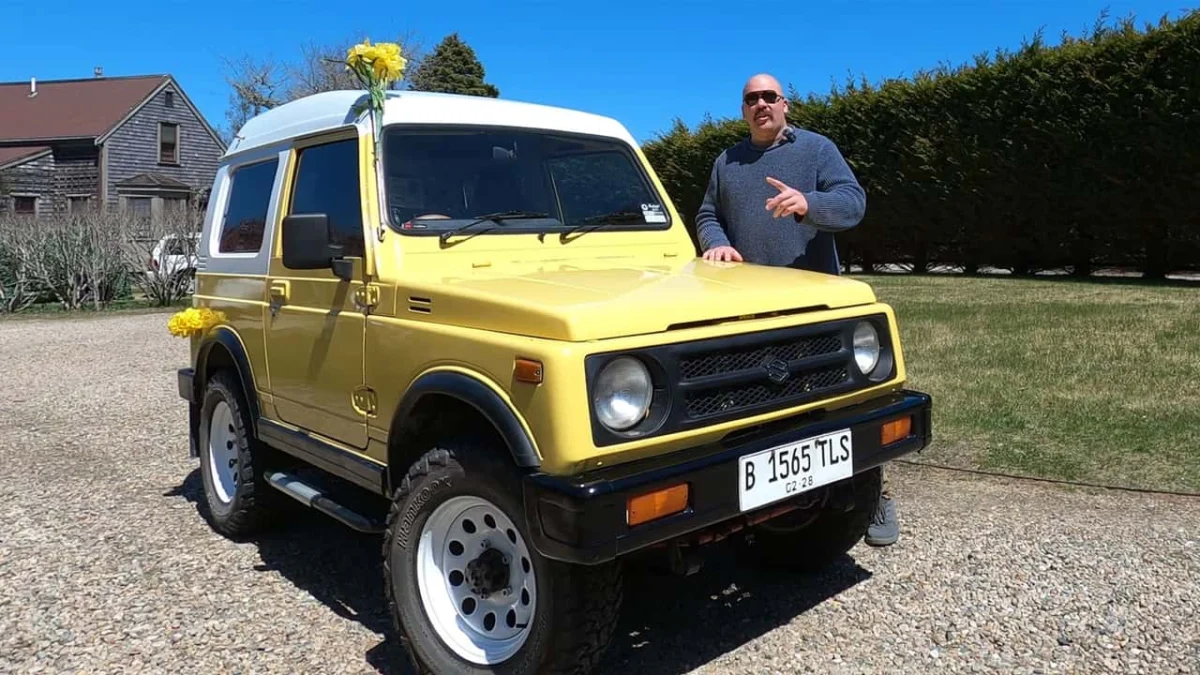

The subject of this conversion is a 1996 Suzuki Jimny, a vehicle renowned globally for its rugged off-road capabilities and compact dimensions. In the United States, a similar iteration of this vehicle was marketed as the Suzuki Samurai, gaining a cult following for its simplicity and "mountain goat" agility. The specific unit in question was imported from Indonesia to the United States in the previous year. However, its life as an internal combustion vehicle was marred by reliability issues.
The Jimny was originally powered by a 1.0-liter four-cylinder engine, a powerplant that, while lightweight, struggled with the demands of modern driving. According to the owner, the vehicle suffered a blown head gasket shortly after its arrival, an issue that was repaired only to recur near the end of the year. Faced with the prospect of a second major engine overhaul for a platform that produced a meager 45 horsepower, the owner reached a turning point. The decision to abandon the gasoline engine in favor of an electric drivetrain was driven by a desire for simplicity, reliability, and the elimination of the complex cooling and fueling systems that had become a source of constant frustration.
Engineering the Five-Day Build: Technical Specifications
The primary objective of the project was to create a functional "neighborhood electric vehicle" (NEV) rather than a long-range highway cruiser. This clarity of purpose allowed for a streamlined selection of components that prioritized cost-efficiency and ease of installation.
The Powerplant: D&D Motor Systems
In place of the 1.0-liter engine, the builder installed a 72-volt direct current (DC) motor sourced from D&D Motor Systems. This specific motor is a staple in the world of golf cart upgrades and light industrial vehicles. While its peak output of nine horsepower may seem insufficient on paper, the electric motor’s torque characteristics tell a different story. The unit produces 65 pound-feet of torque, available almost instantaneously. Because electric motors deliver maximum torque from zero RPM, the Jimny retains a level of low-speed responsiveness that rivals its original gasoline configuration. The motor was purchased for approximately $929, representing a fraction of the cost of high-performance AC motors typically used in premium conversions.
Transmission and Mechanical Linkage
One of the most notable aspects of this DIY build is the retention of the original five-speed manual transmission. To marry the D&D motor to the Suzuki gearbox, a custom adapter plate was utilized. This setup allows the driver to select a gear appropriate for the desired speed—typically second or third for city driving—and leave it there. Because the electric motor does not idle and cannot stall in the traditional sense, the clutch assembly was removed entirely. This simplified the mechanical linkage and reduced the rotational mass of the drivetrain.
Battery Chemistry and Energy Storage
The most significant investment in any EV conversion is the battery system. For this build, the owner selected a 105-amp-hour lithium-iron-phosphate (LiFePO4) battery pack. LiFePO4 chemistry is increasingly favored by DIY enthusiasts due to its thermal stability and long cycle life compared to traditional lithium-ion (NMC) batteries. The pack, originally designed for high-end golf cart applications, retails for roughly $1,900.
To maintain the vehicle’s balance and cargo space, the battery was mounted at the rear of the chassis, occupying the space formerly reserved for the fuel tank. This placement ensures a low center of gravity, which is critical for a narrow, high-profile vehicle like the Jimny.
Performance Metrics and Daily Usability
The resulting vehicle is a specialized tool optimized for short-distance urban transit. The 105Ah battery provides a realistic driving range of 20 to 30 miles on a single charge. While this range would be insufficient for a primary commuter vehicle in many parts of the country, it aligns perfectly with the owner’s intent to use the Jimny for local errands and low-speed cruising.
Charging the vehicle is as straightforward as the build itself. The system utilizes a standard 120V household outlet, requiring approximately five hours to reach a full charge from a depleted state. This eliminates the need for expensive Level 2 charging infrastructure at home. In terms of velocity, the electric Jimny has reached speeds of up to 50 miles per hour. This is remarkably close to the original factory top speed of the 1.0-liter gasoline model, which was never intended for high-speed interstate travel.
Furthermore, the conversion benefited from the Jimny’s original mechanical simplicity. Unlike larger modern vehicles, the 1996 Jimny did not feature vacuum-assisted power brakes. This meant the builder did not need to install an electric vacuum pump to maintain braking performance—a common hurdle in more complex EV swaps.
Financial Breakdown: The $5,000 Threshold
The success of this project is rooted in its disciplined budget management. By sourcing components from the industrial and golf cart sectors rather than the automotive OEM sector, the builder achieved a functional conversion for a total expenditure of roughly $4,800 to $5,000.
| Component | Approximate Cost |
|---|---|
| D&D 72V DC Motor | $929 |
| 105Ah LiFePO4 Battery | $1,900 |
| 500-Amp Controller | $815 |
| DC-to-DC Converter (eBay) | $150 |
| Adapter Plate & Misc. Hardware | $1,000 |
| Total | $4,794 |
This financial profile stands in stark contrast to professional conversions, which often start at $50,000 for labor and parts. It demonstrates that for older, lighter vehicles, the cost of electrification has reached a point of parity with the cost of a major engine and transmission replacement.
The Broader Context of the "Electromod" Movement
The "Life of Troy" Jimny project is part of a larger trend where the "Right to Repair" intersects with environmental consciousness. As older internal combustion vehicles age, the availability of replacement parts for obsolete engines dwindles, and the cost of specialized labor rises. Simultaneously, the supply of used EV components—ranging from Tesla drive units to Nissan Leaf battery modules—is increasing.
Industry analysts suggest that the DIY EV market is bifurcating into two distinct segments. The first is the high-performance segment, where enthusiasts use salvaged high-voltage parts to create "Tesla-swapped" muscle cars. The second, exemplified by this Suzuki build, is the utility segment. This group focuses on keeping older, beloved chassis on the road by using low-voltage (48V to 72V) systems that are safer for hobbyists to handle and easier to integrate.
The reaction to the Jimny build within the online community has been overwhelmingly positive. Commenters and fellow builders have noted that similar conversions are becoming common for All-Terrain Vehicles (ATVs), classic farm trucks, and vintage microcars. These vehicles often have "infinite" lifespans when converted to electric, as the most common points of failure—gaskets, fuel pumps, and exhaust systems—are removed from the equation.
Implications for Sustainability and Urban Mobility
From a sustainability perspective, the $5,000 Jimny conversion highlights the "circular economy" of the automotive world. Rather than scrapping a vehicle with a blown engine—an act that carries a significant carbon footprint due to the energy required for recycling and the manufacturing of a replacement—the owner chose to upcycle the existing steel chassis.
Moreover, this project underscores the potential for "micro-EVs" to solve urban congestion and pollution issues. Small, electrified 4x4s like the Jimny are ideal for navigating dense city centers where parking is scarce and high speeds are unnecessary. As more cities around the world implement "Low Emission Zones" (LEZs) that ban older diesel and gasoline cars, low-cost DIY conversions may provide a lifeline for owners of classic vehicles who wish to continue driving in urban environments.
Conclusion: A Blueprint for the Future
The 1996 Suzuki Jimny EV stands as a testament to what can be achieved with a clear vision and a modest budget. By eschewing the pursuit of "Tesla-level" performance and focusing on the specific needs of a local runabout, the builder has created a vehicle that is more reliable, cheaper to operate, and more environmentally friendly than its original form.
As battery prices continue to decline and the ecosystem of adapter plates and controllers expands, the barrier to entry for EV conversions will only continue to lower. The "Life of Troy" project is no longer an outlier; it is a blueprint for a future where the neighborhood mechanic or the home hobbyist can play a central role in the transition to electric mobility. The $5,000, five-day conversion proves that the electric revolution does not always have to happen on a factory floor—sometimes, it starts in a home garage.
